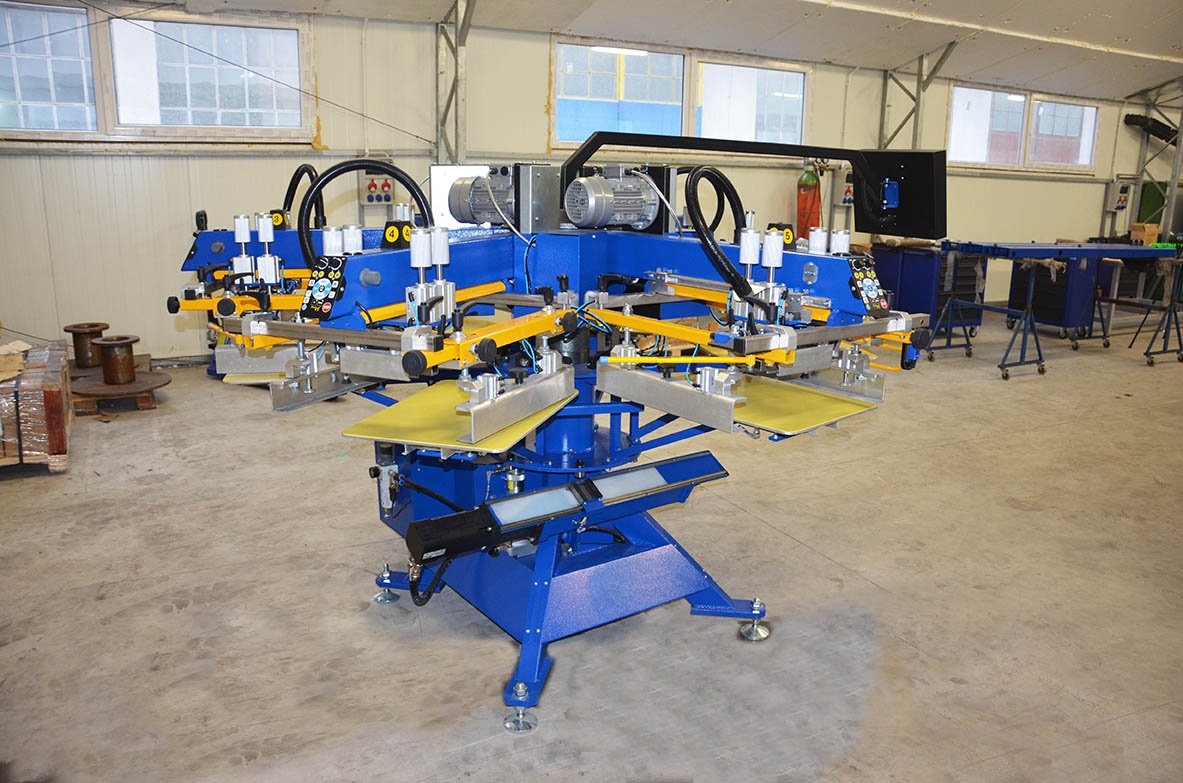

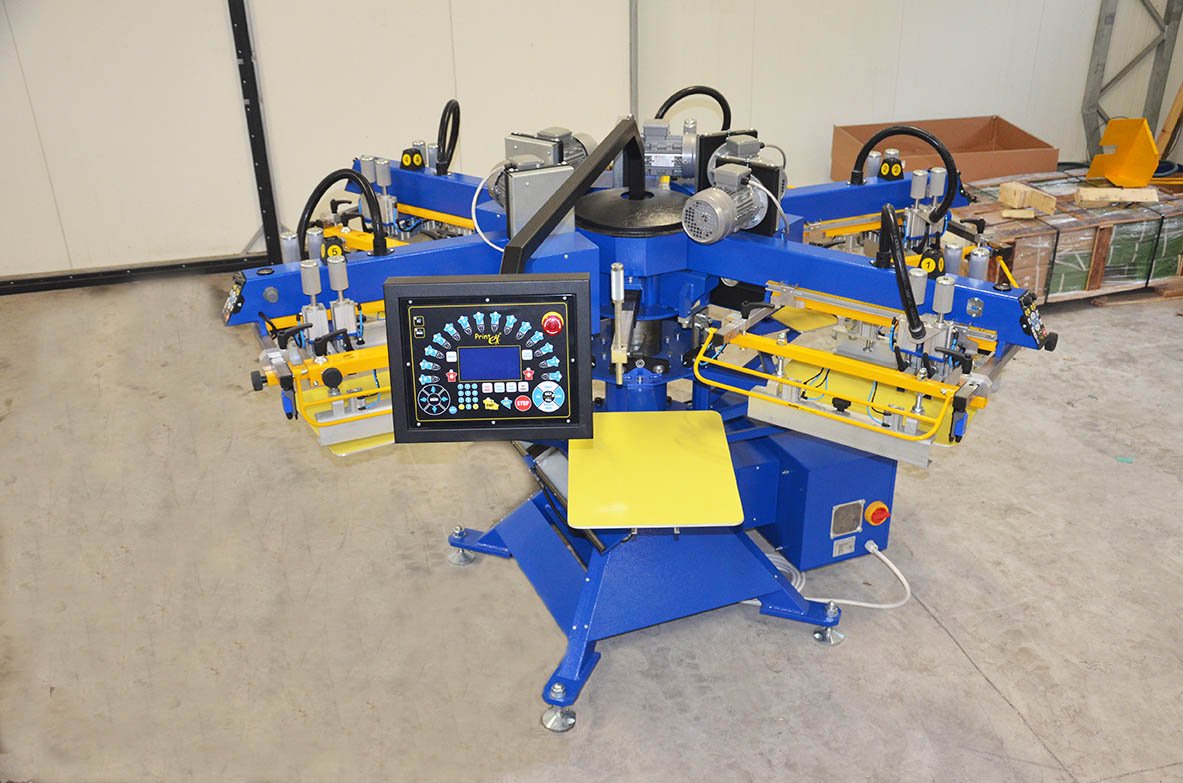

Bagmatic is small diamiter machine dedicated for small area (30x 30 cm) fast printing, AC driven print heads, servo indexer rotation system, all features control keypad on every head. Software fully corresponds with machine hardware possibility. Sequences, Multi print flashing, half index in both directions, fully implemented IR Quartz flashes. When BAGMATIC is the right choice:If demanding - high quality, high speed prints are wanted. If medium print formats 12 x16” are satisfying, if small diamiter is the limitation.
| Specifications | BAGMATIC 2/6 | BAGMATIC 3/6 | BAGMATIC 4/6 | BAGMATIC 5/6 |
|---|---|---|---|---|
| Air requirements | 6 Bar, 150 l/min | 6 Bar, 200 l/min | 6 Bar, 250 l/min | 6 Bar, 300 l/min |
| Electrical requirements | 400 V, 3PH, 4 kW | 400 V, 3PH, 4,5 kW | 400 V, 3PH, 5 kW | 400 V, 3PH, 5,5 kW |

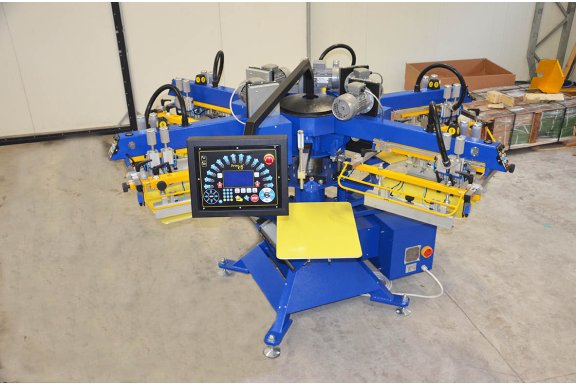

| Total diameter | 240 cm | 240 cm | 240 cm | 240 cm |
| Standard printing area | 30 х 30 cm | 30 х 30 cm | 30 х 30 cm | 30 х 30 cm |
| Maximum speed | 1200 cycles/hour | 1200 cycles/hour | 1200 cycles/hour | 1200 cycles/hour |
| Maximum scree size | 40 х 60 cm | 40 х 60 cm | 40 х 60 cm | 40 х 60 cm |
| Total weight | 880 kg | 950 kg | 1020 kg | 1100 kg |

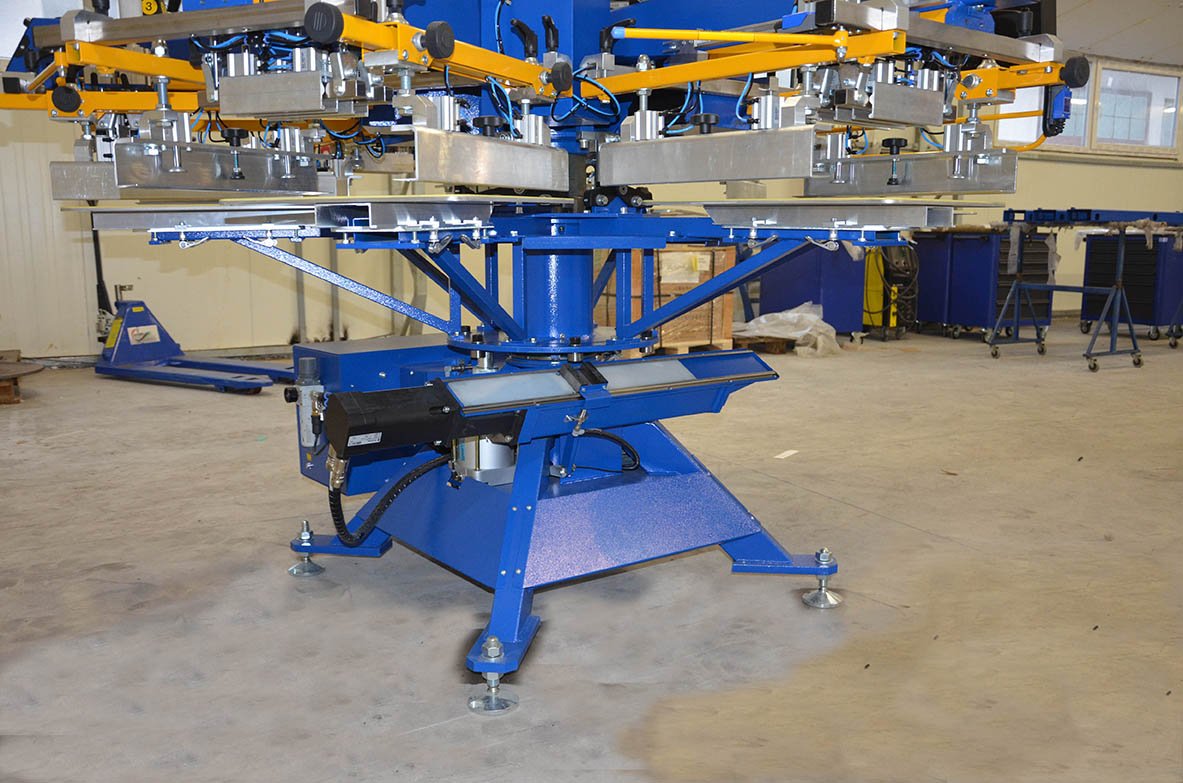

Rotation
• Precision servo drive (parametrized for different pallet weight for smooth rotation), both direction drive
(CW and CCW)
• Servo driven indexing in combine with MULTIPRINT FLASHING saves extra color

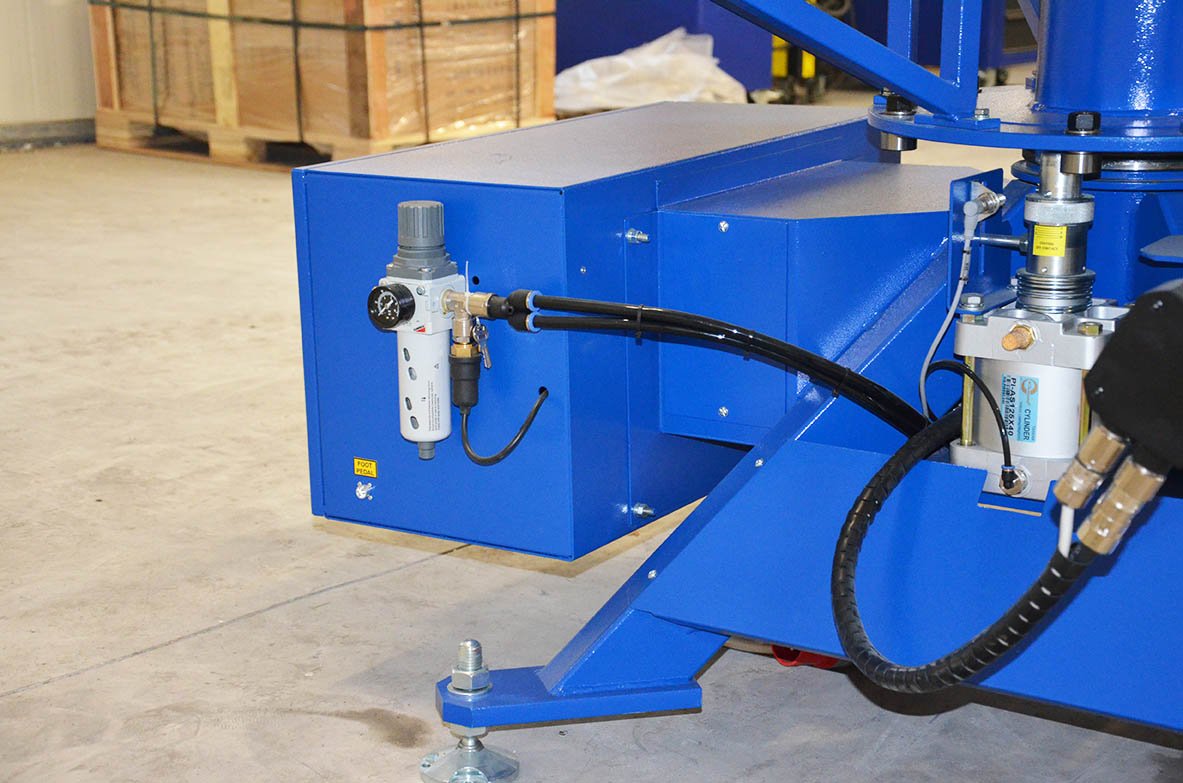

Lifting

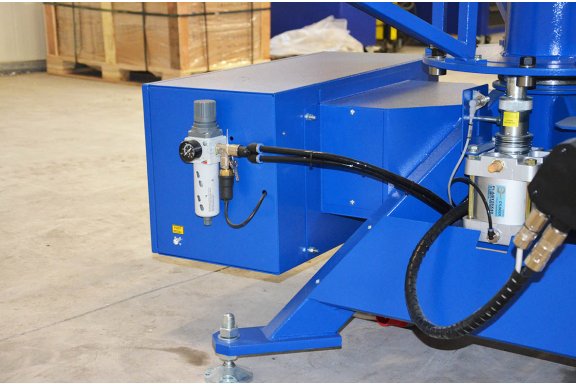

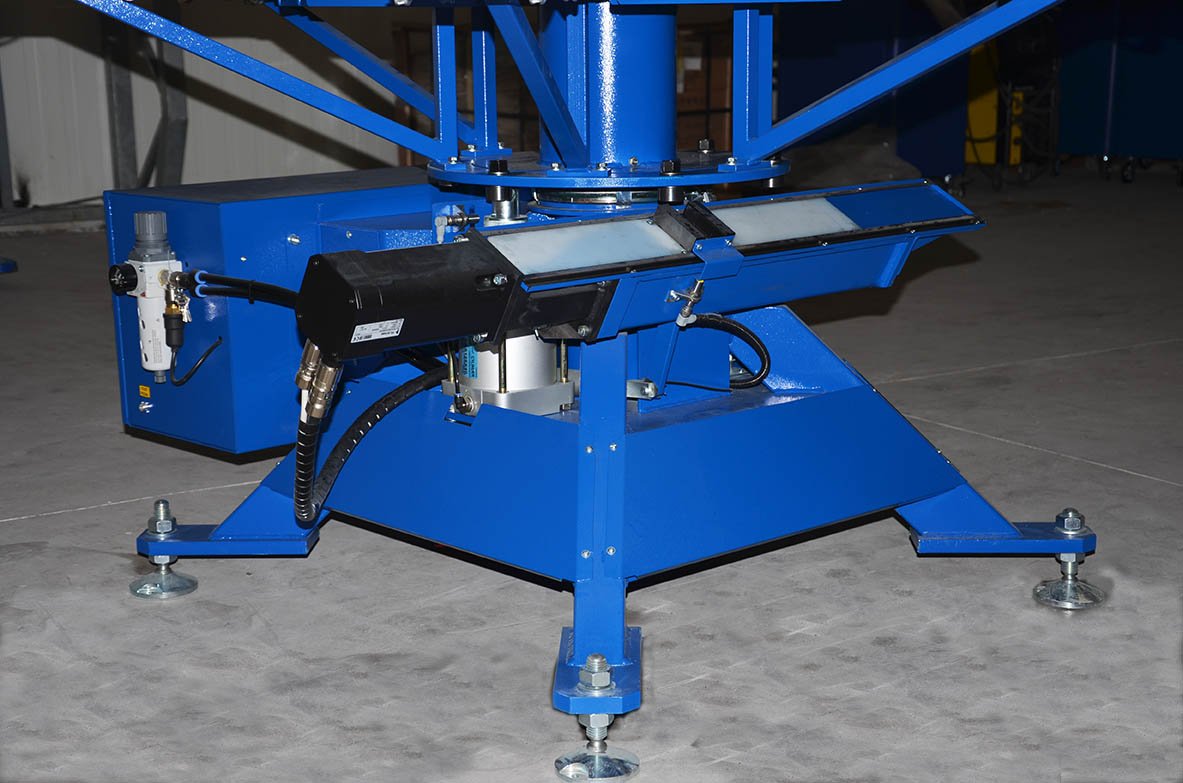

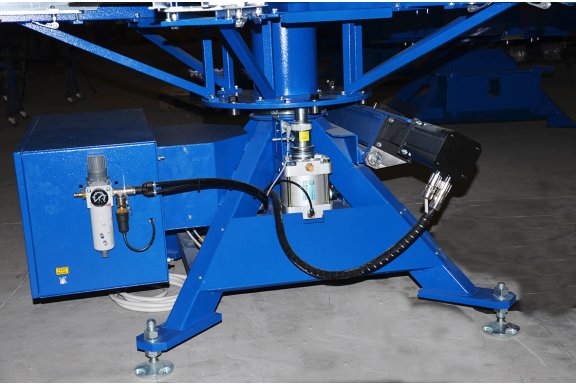

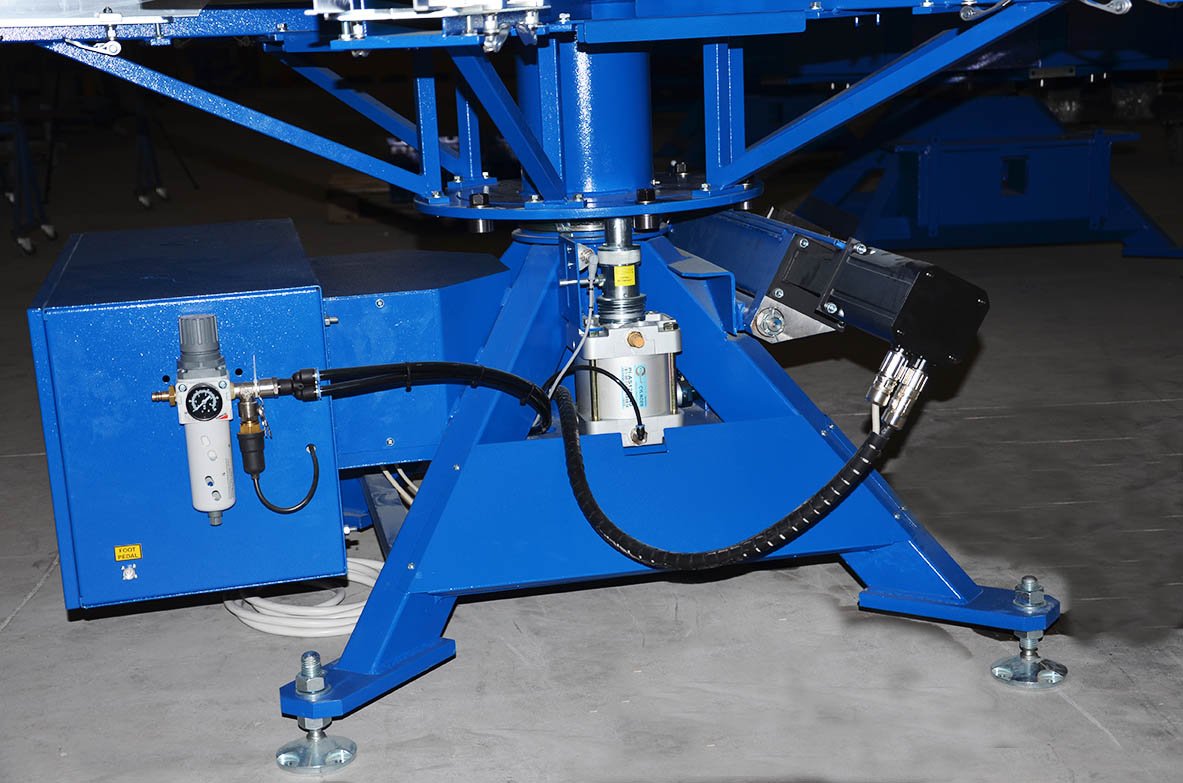

• Single lifting cylinder with central off-contact mechanism

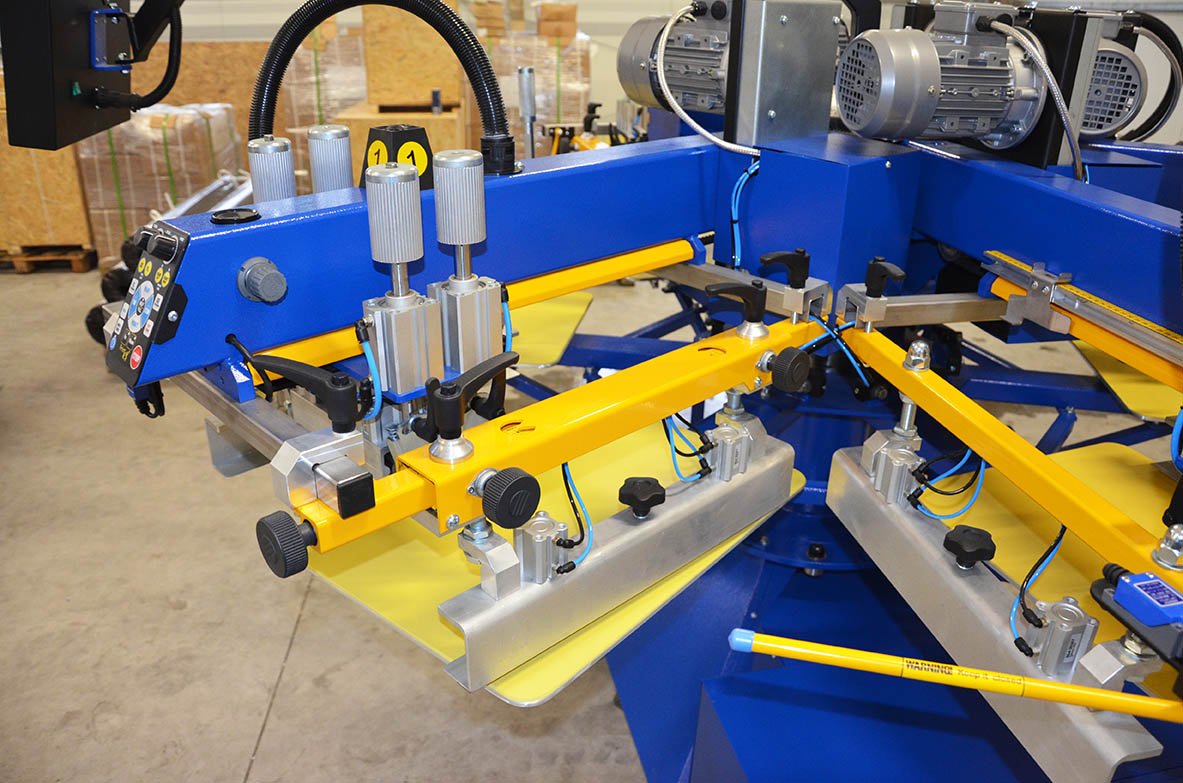

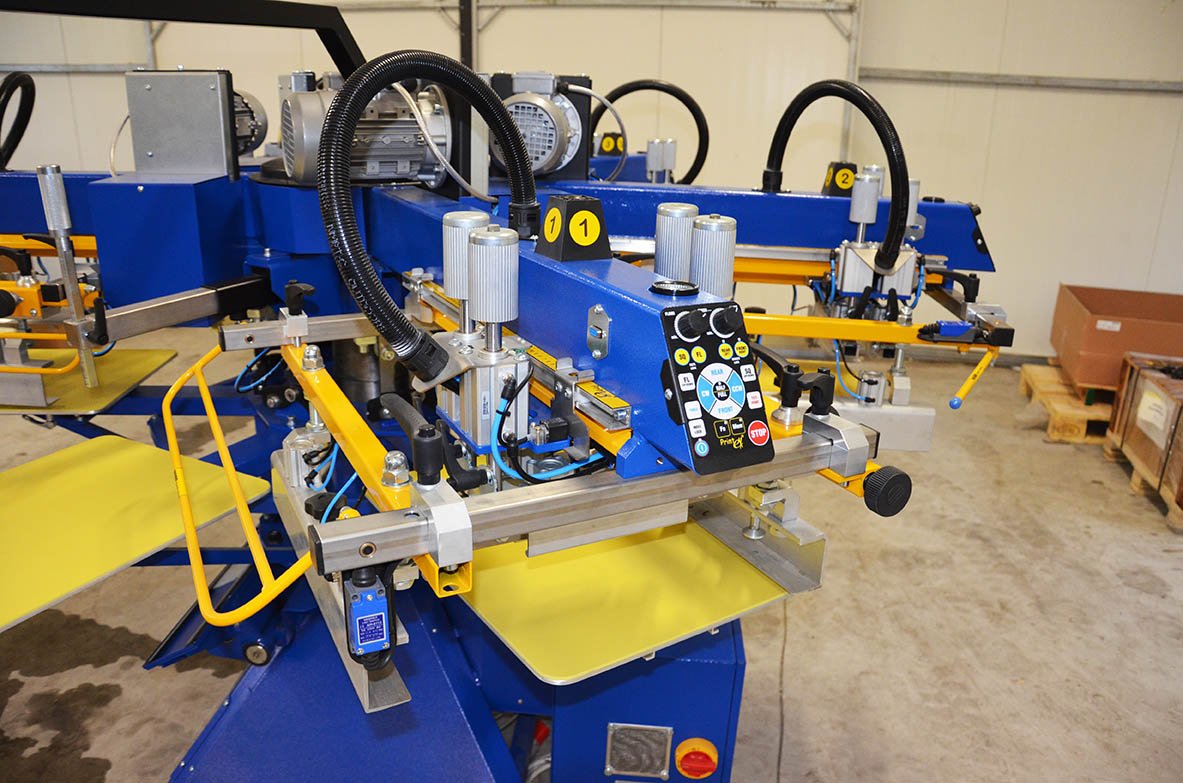

Print head
• Consist of keypad panel with control over all head and machine motion movements
• AC driven carriage travel with frequency converter for speed and torque control
• Both sides print length adjustment, carriage hand manipulation fault proof
• Advanced programming functions
• Software is constantly proved also according to printers suggestions (We gladly listen to Your comments, help us create better screen printing tool!)

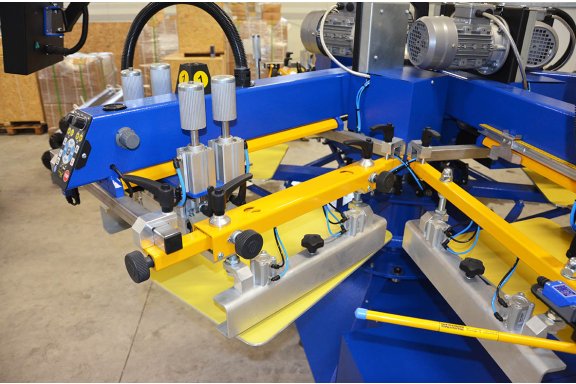

Screen Locks
• Pneumatic screen locks controlled from keypad, additional manual clamps for pressure off screen
• Position save
• Registration. Upper division tolerance (directly responsible for print registration quality) in range of +/-0,01 mm, for average printing point on pallet means deviation of +/- 0,02 mm. Those numbers are meanness for textile, also enables other material and surface printing front micro-alignment (3 axis) and rear (1 axis)
• Fast print alignment with floor light pallet
Squeegee and flood bar
• Independently squeegee and flood print setting
• Squeegee air pressure regulator with glass gauge
• Tool less squeegee and flood bar angle adjustment
Warranty and service
• 2 year warranty
• Service agreement on special conditions
Options
• Pneumatic squeegee and flood bars locks
• Special upper wheel design to fit 80 cm (30 " doors)
