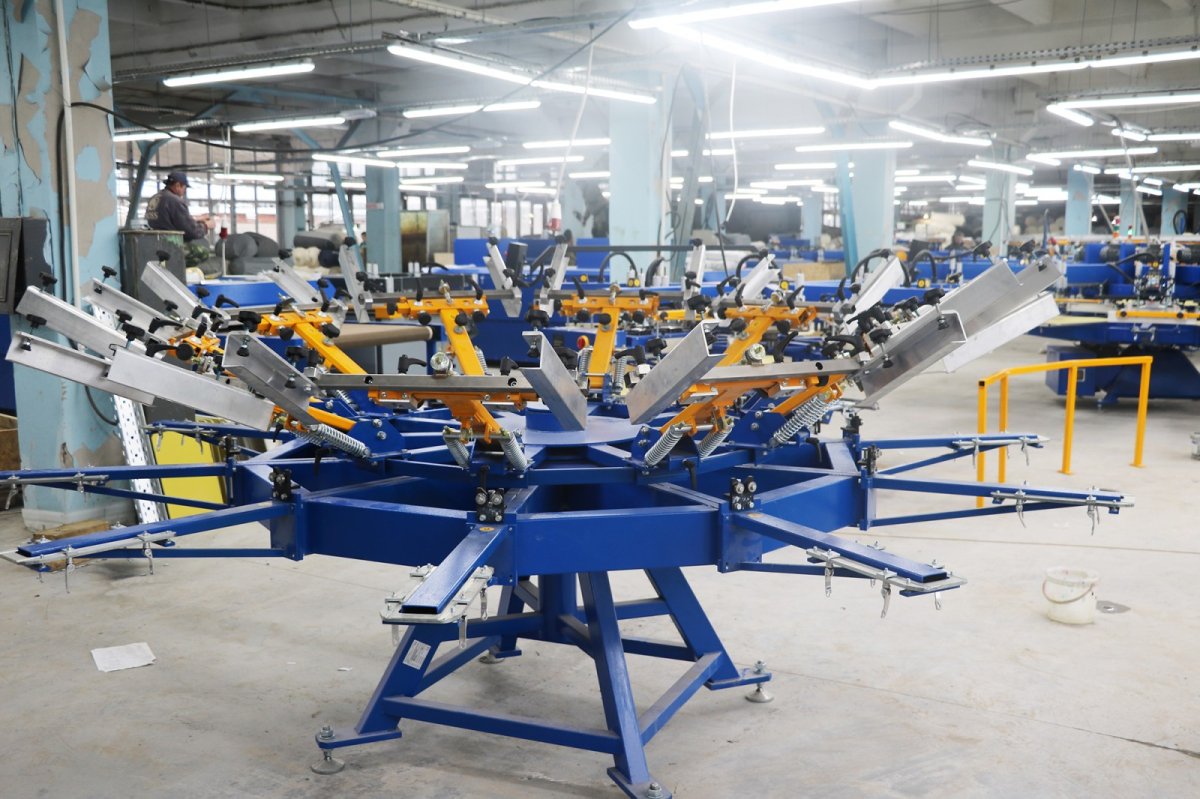

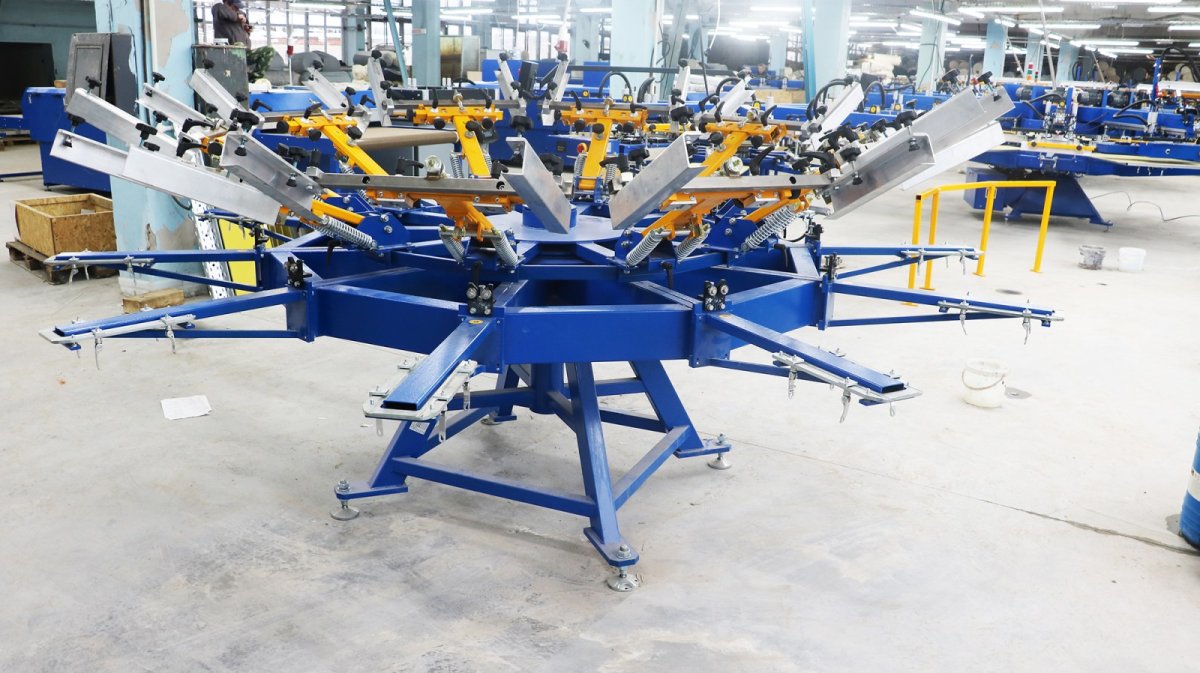

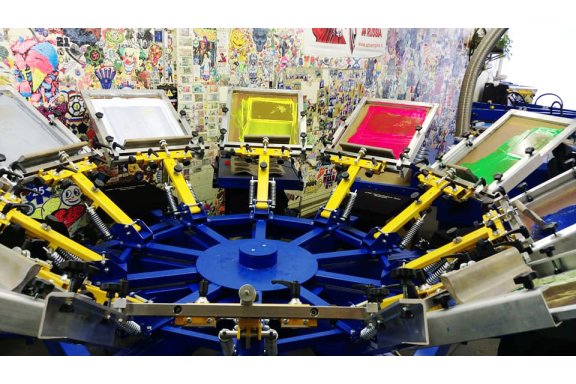

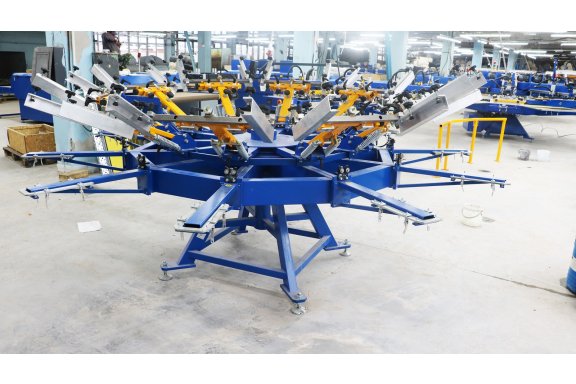

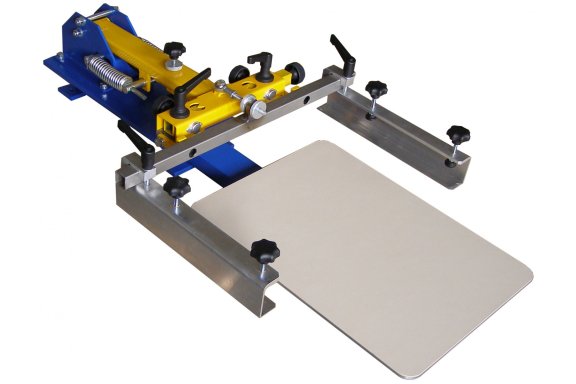

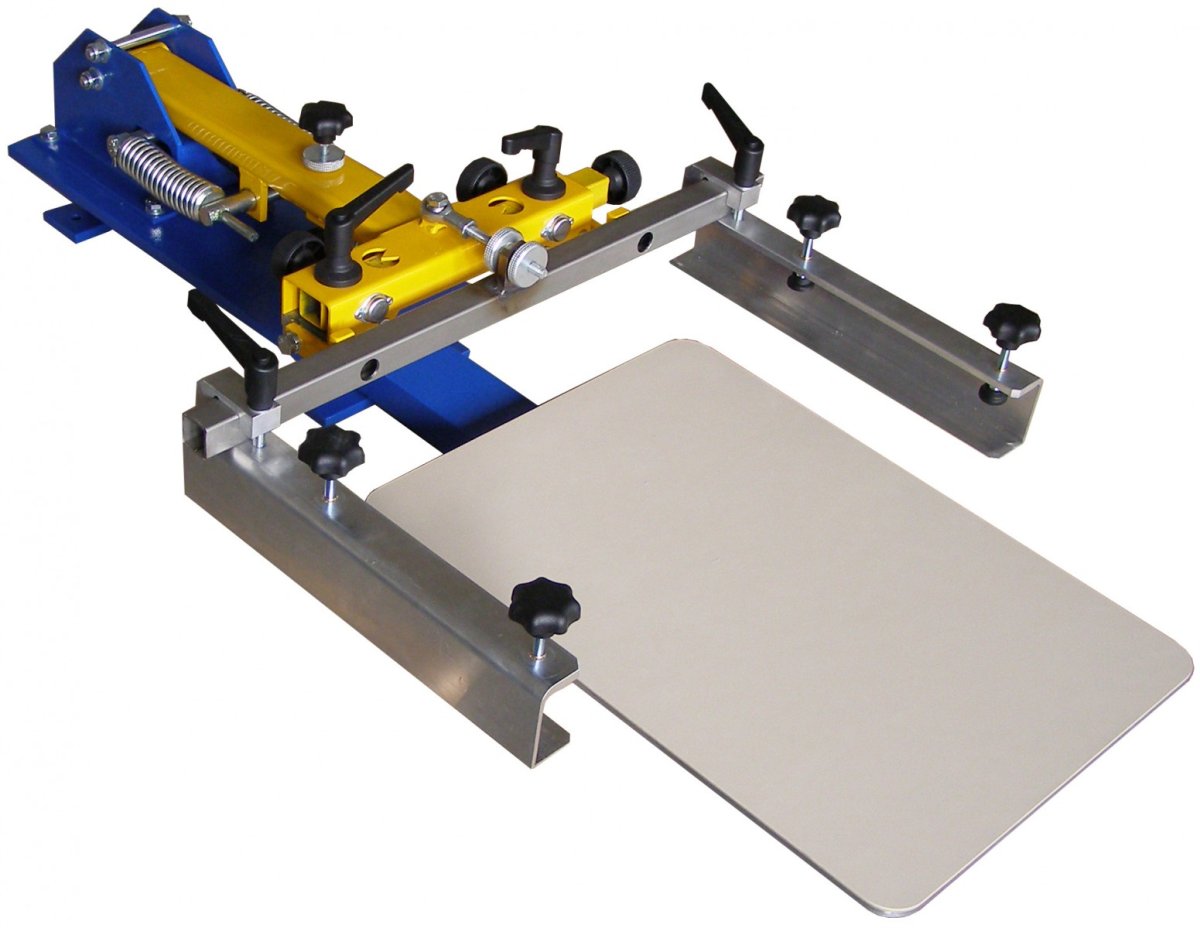

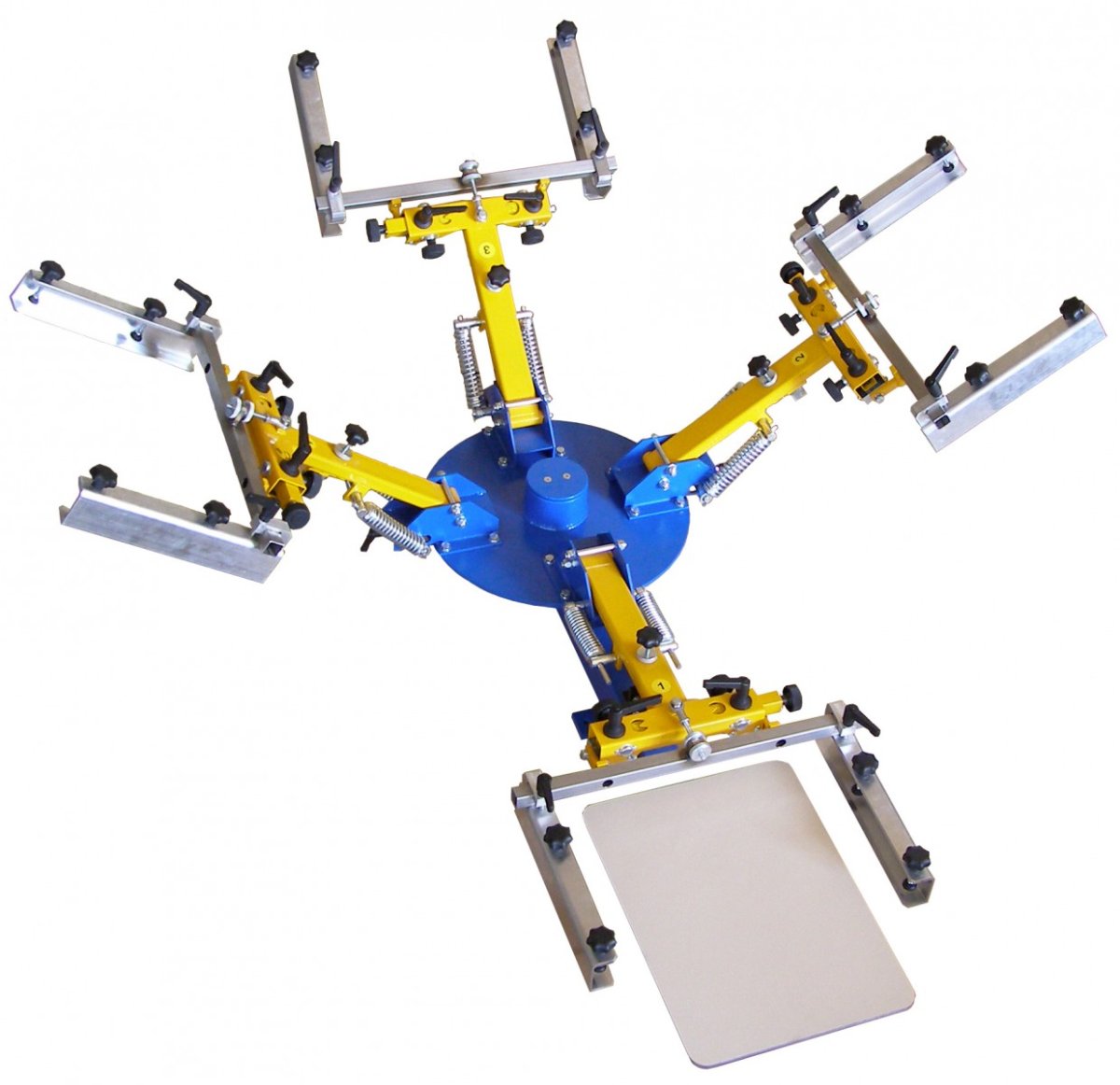

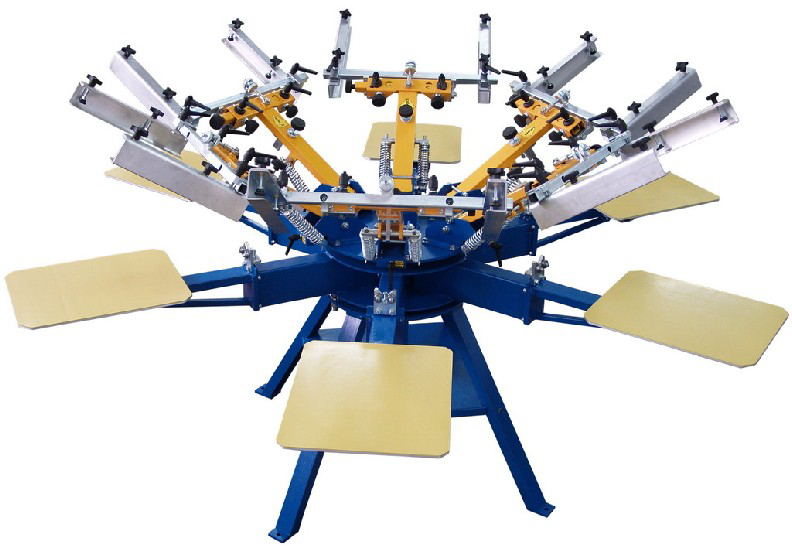

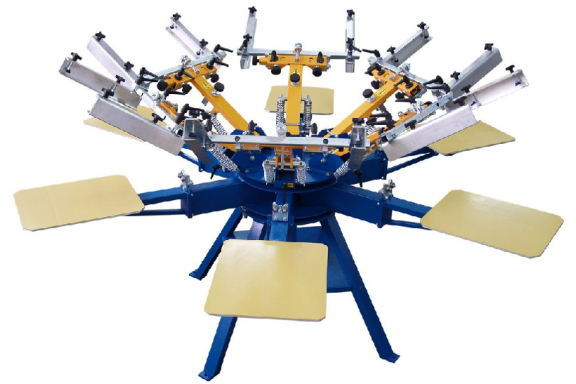

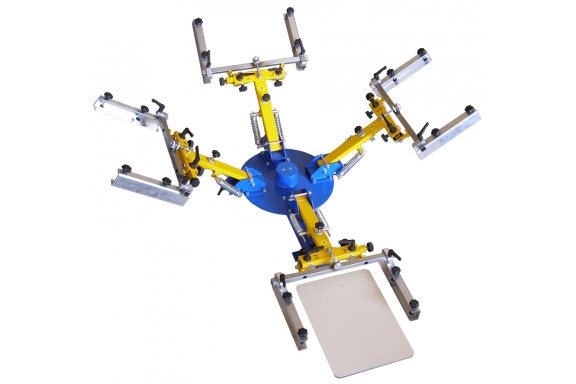

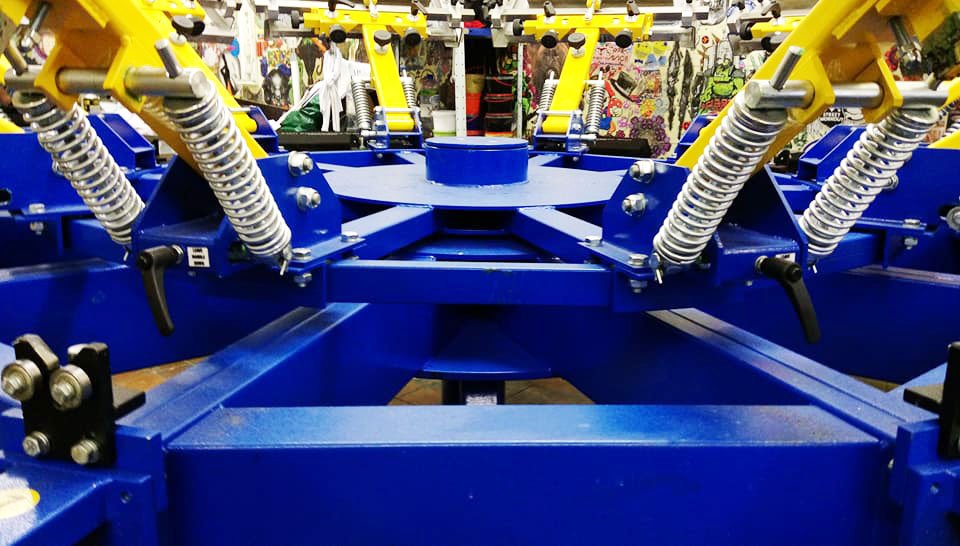

MAN series hand carousels are available in versions up to 12 colors. Starting with 1 and 4 colors bench models, throw most popular 4,6 and 8 colors models, up to 10 and 12 colors for special purposes . The basic thing is construction stability, with consequence we have 3 designs of main body according to machine’s size. We do our best to unify components of registration system used on all MAN series models . Very well tested elements assure long life of the product . Solid ALU pallets coated with special rubber , made of absolutely flat ALU plates . In standard it comes with 41 x 56 cm pallets set. Any size of pallets available on request. Machine is registered and leveled in factory, after delivery its only left to attache and set foots to floor level
| Specifications | MAN 4/4 | MAN 6/6 | MAN 8/8 | MAN 10/10 | MAN 12/12 |
|---|---|---|---|---|---|
| Standard print area | 40 x 50 cm | 40 x 50 cm | 40 x 50 cm | 40 x 50 cm | 40 x 50 cm |
| Maximum print area | 50 x 70 cm | 50 x 70 cm | 50 x 70 cm | 50 x 70 cm | 50 x 70 cm |
| Standard pallet size | 41 x 56 cm | 41 x 56 cm | 41 x 56 cm | 41 x 56 cm | 41 x 56 cm |
| Total diameter | 330 cm | 330 cm | 370 cm | 400 cm | 480 cm |
| High | 180 cm | 180 cm | 180 cm | 180 cm | 180 cm |
| Total weight | 280 kg | 330 kg | 440 kg | 750 kg | 850 kg |
STRUCTURE
Metal structure welded with tooling for best precision, parts laser cutted
TABLE ROTATION
Manual rotation with pin locks on each station (Optional rotation drive system)
PRINTING
All colors down printing, screen weight compensation, full off-contact adjustment)
REGISTER

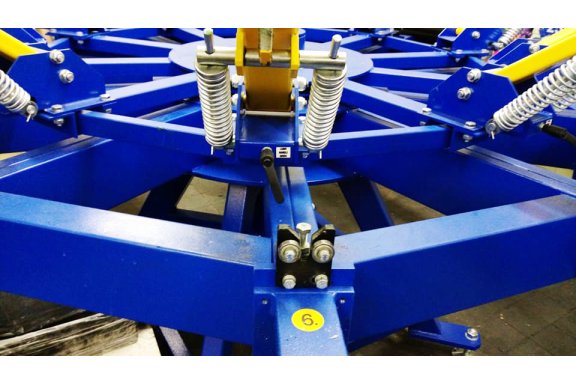

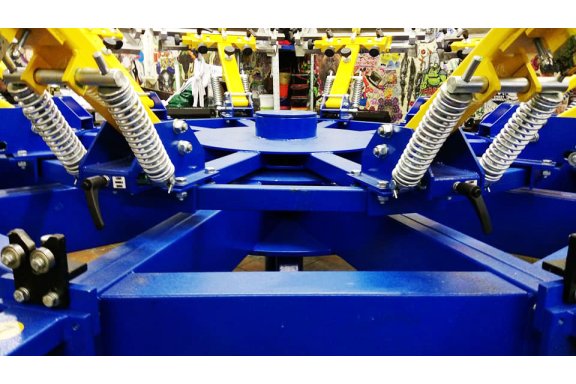

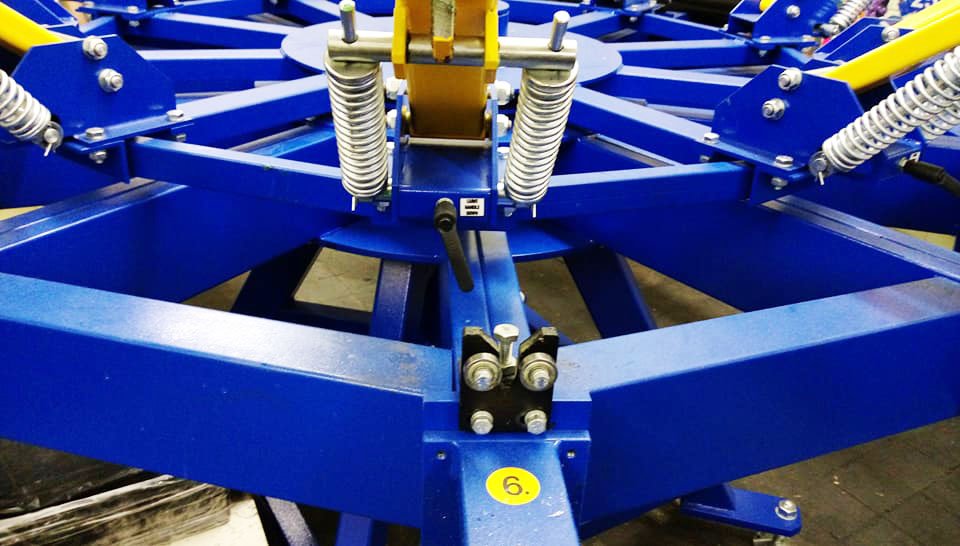

Factory set up register, 2 bearings with position pin for each color
TOLL LESS ADJUSTMENT
All adjustment done by handles knobs and levers
TRANSPORT AND INSTALLATION
Standard wooden pallet packaging with soft secured top, Optional crating or compact KIT packaging
Installation of standard packed machine is limited to lower arms assembly (for 10 and 12 colors service technician is necessary)
- AND MANY OTHERS
- AND MANY OTHERS
- Model: AND MANY OTHERS
- Installation year: AND MANY OTHERS

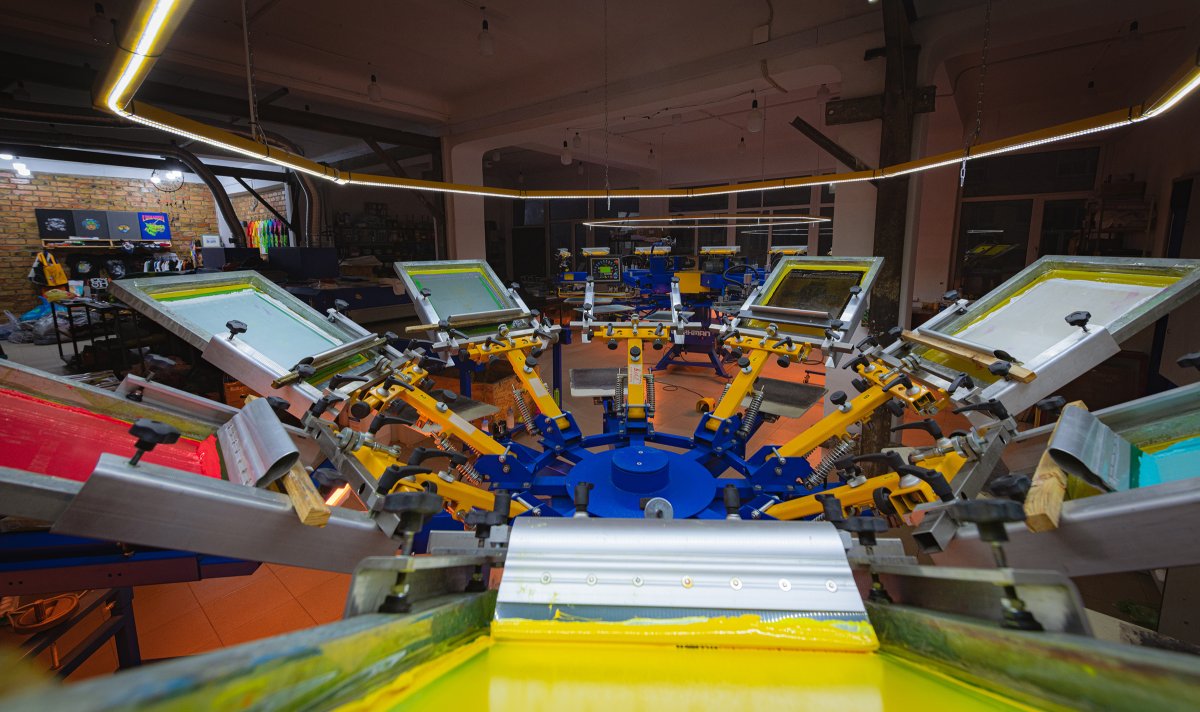

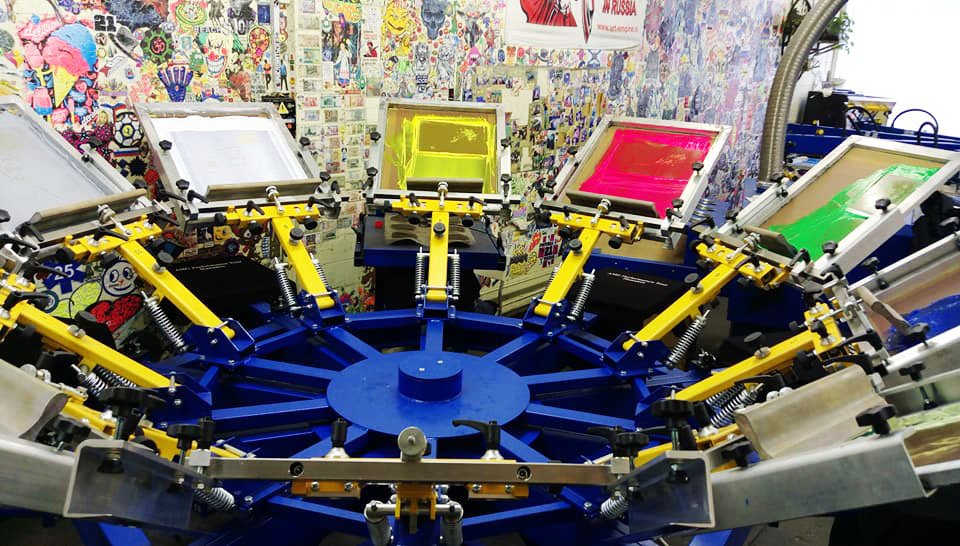

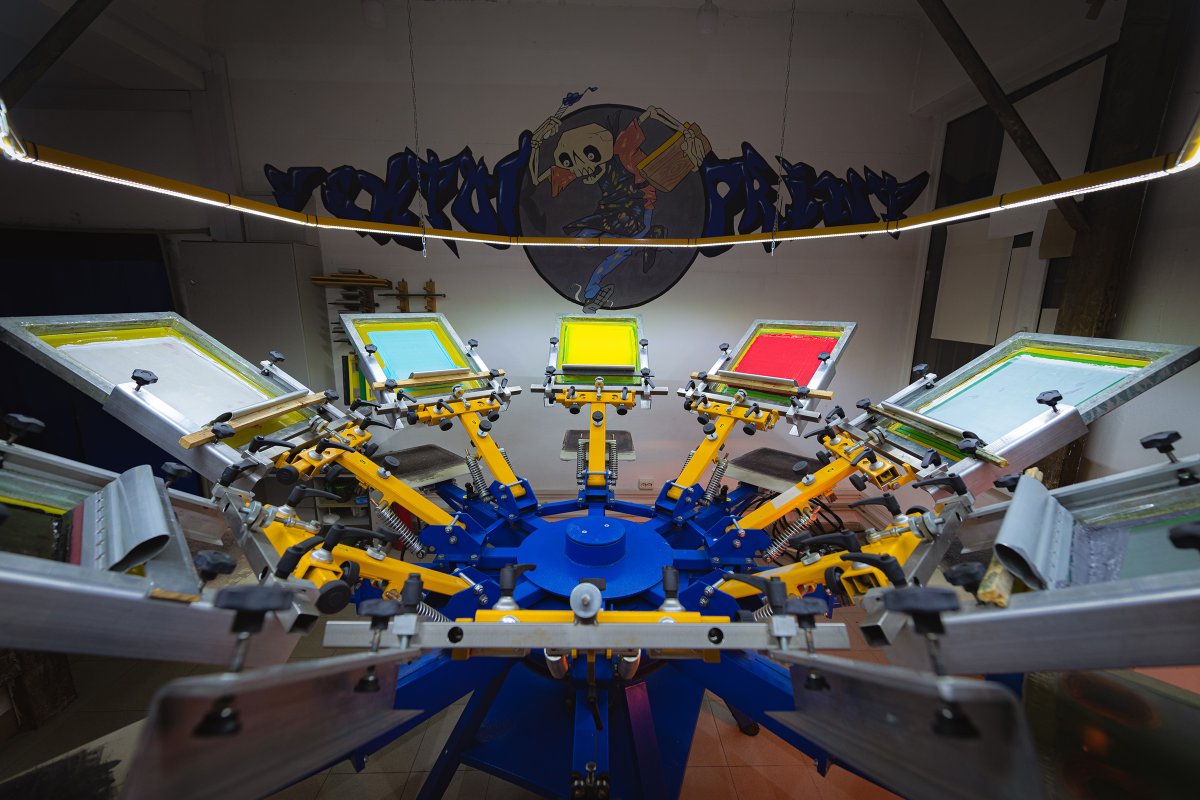

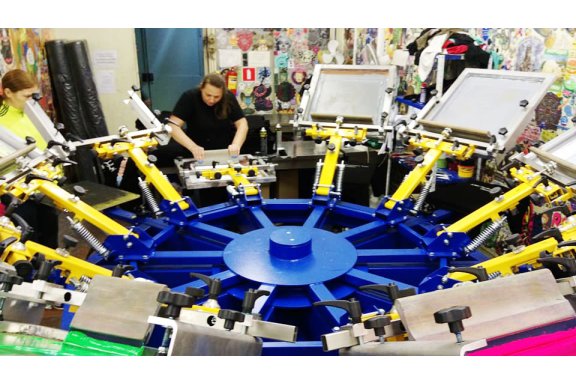

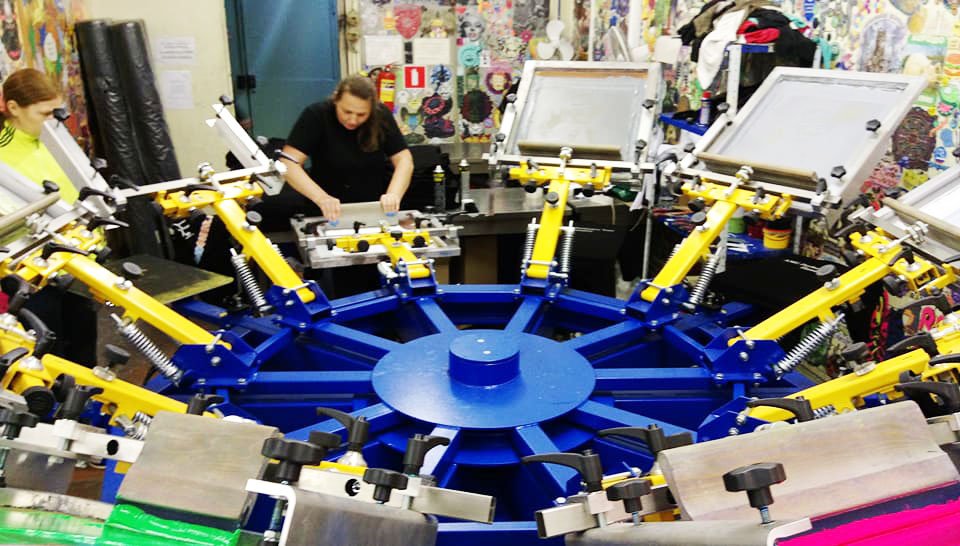

- Rostov-on-Don
