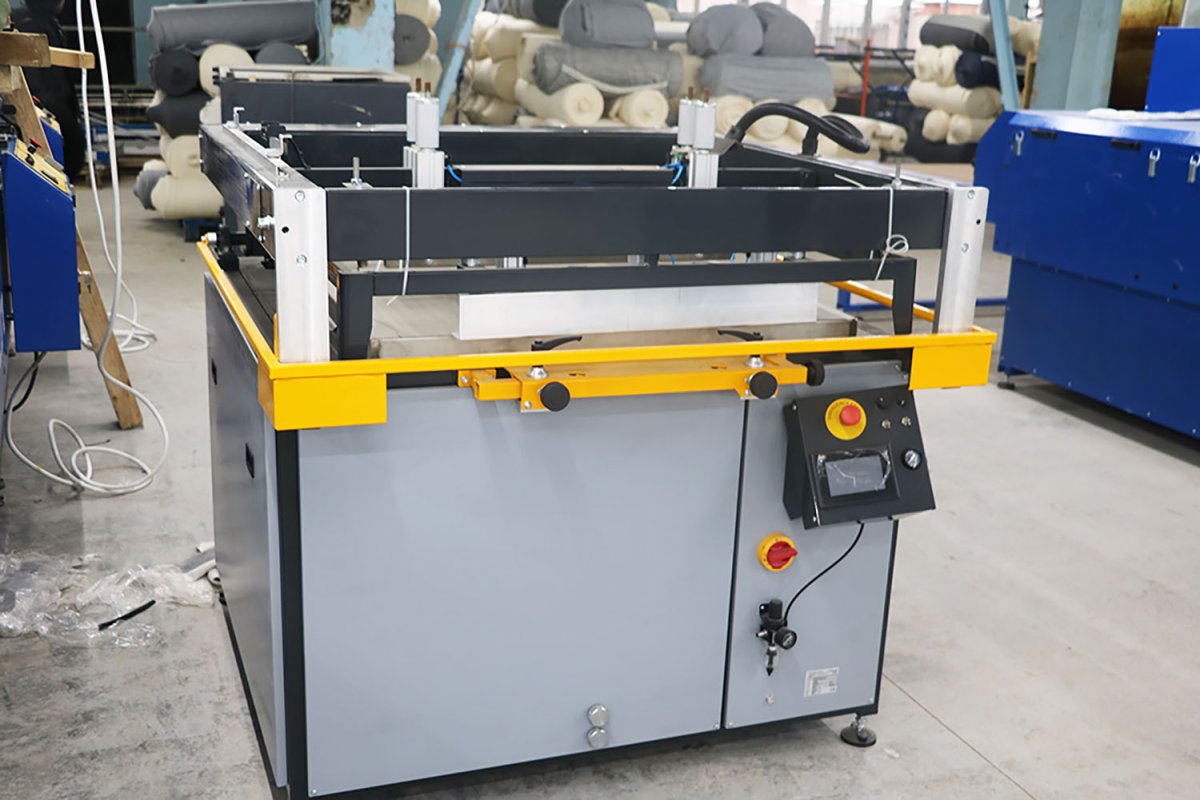

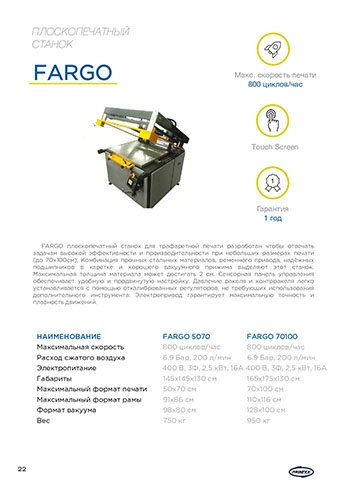

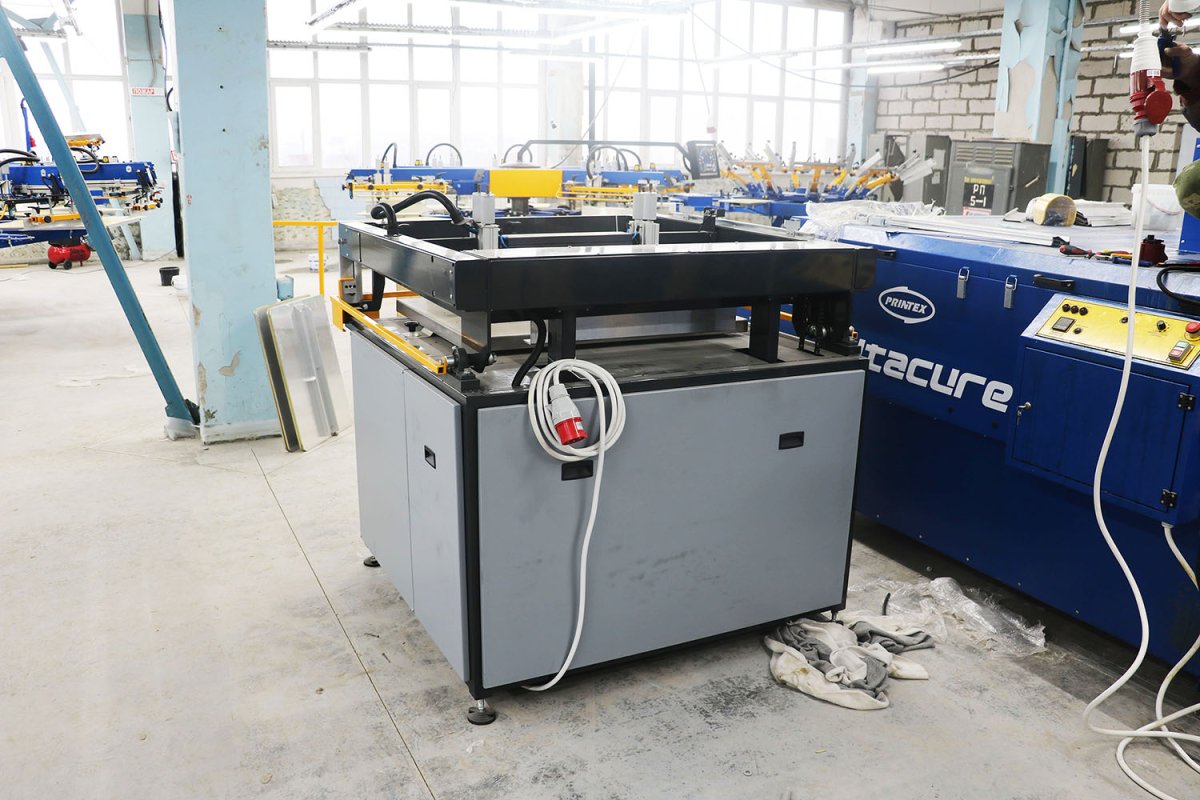

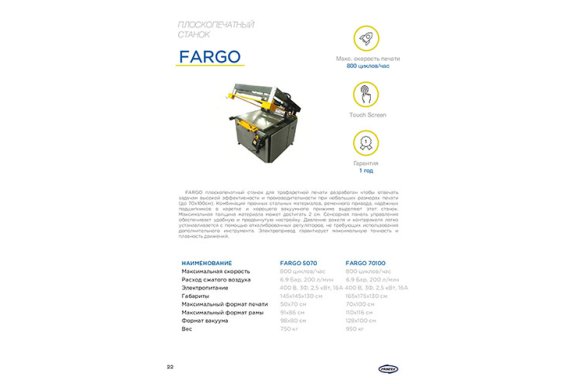

The FARGO flatbed screen printing machine is designed to meet the requirements of high efficiency and productivity in small print sizes (up to 70x100cm). The combination of durable steel materials, a belt drive, reliable carriage bearings, and a good vacuum grip make this machine stand out. The maximum material thickness can reach 2cm. The touch screen control panel provides a user-friendly and advanced setup. The rake and counter-rake pressure can be easily adjusted using calibrated controls that do not require additional tools. The electric drive ensures maximum precision and smooth movements.
| Maximum speed |
800 циклов/час |
800 циклов/час |
|
Air |
6.9 Бар, 200 л/мин |
6.9 Бар, 200 л/мин |
|
Electric |
400 В, 3Ф, 2,5 кВт, 16А |
400 В, 3Ф, 2,5 кВт, 16А |
|
Size |
145х145х130 см |
165х175х130 см |
|
Max. printing size |
50х70 см |
70х100 см |
|
Max. frame size |
91х86 см |
110х116 см |
|
Vacuum zone |
98х80 см |
128х100 см |
|
Weight |
750 кг |
950 кг |
STRUCTURE
Metal structure welded with tooling for best precision, parts laser cutted
TABLE ROTATION
Manual rotation with pin locks on each station (Optional rotation drive system)
PRINTING
All colors down printing, screen weight compensation, full off-contact adjustment)
REGISTER
Factory set up register, 2 bearings with position pin for each color
TOLL LESS ADJUSTMENT
All adjustment done by handles knobs and levers
TRANSPORT AND INSTALLATION
Standard wooden pallet packaging with soft secured top, Optional crating or compact KIT packaging
Installation of standard packed machine is limited to lower arms assembly (for 10 and 12 colors service technician is necessary)
