Minimatic is ideal choice for small companies which are make up the new business with a "0" or moving from a manual to an automatic presses. You can be sure that invest in reliable technology that meets all your needs. The market imposes higher demands: more orders for smaller print runs, better quality at lower prices, the classical small-format printing with special inks. Minimatic will help you not just to cope successfully with these requirements, but also to make a profit. The equipment has a quick self-sufficiency (2-4 months at full load), is simple and reliable in operation. Standard printing format in Minimatic can reach 41x41 cm, the maximum optional sealing format may be 70x41 cm. The maximum print speed of the machine is 900 cycles / hour.
| Specifications | MINIMATIC 4/6 | MINIMATIC 5/6 | MINIMATIC 6/8 | MINIMATIC 7/8 |
|---|---|---|---|---|
| Air requirements | 6 Bar, 450 l/min | 6 Bar, 450 l/min | 6 Bar, 500 l/min | 6 Бар, 500 l/min |
| Electrical requirements | 230 V, 50 Hz, 1PH, 0,1 kW, 1 А | 230 V, 50 Hz, 1PH, 0,1 kW, 1 А | 230 V, 50 Hz, 1PH, 0,1 kW, 1 А | 230 V, 50 Hz, 1PH, 0,1 kW, 1 А |
| Total diameter | 300 cm | 300 cm | 300 cm | 300 cm |
| Maximum print area | 58 х 41 cm | 58 х 41 cm | 41 х 70 cm | 41 х 70 cm |
| Standart pallets | 41 х 56 cm | 41 х 56 cm | 41 х 56 cm | 41 х 56 cm |
| Total weight | 1100 kg | 1200 kg | 1320 kg | 1480 kg |
Rotation
• Pneumatic driven indexing system
Lifting
• Single lifting cylinder with central off-contact mechanism

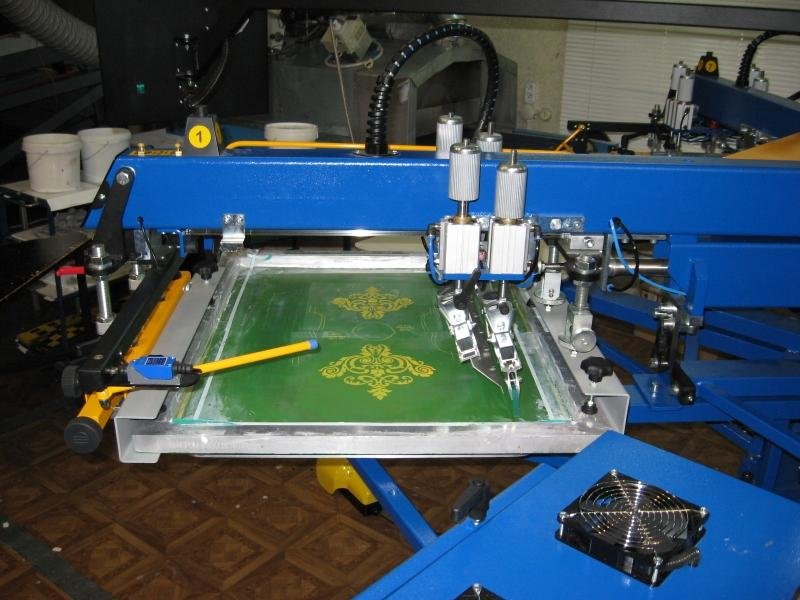

Printhead
• Pneumatic driven print stroke with flow control for speed adjustment
• Swiveling mainpanel emulates individual head control withaccess to 3 main motions of any head: TESTPRINT, SQUEEGEE UP/ DOWN, CARRIAGE FRONT/ REAR
Advanced programming functions
• Software is constantly upgraded according to printers suggestions (We gladly listen to your comments, as they help us create a better screen printing tool and help us grow as a manufacturer!)
ScreenLocks
• 4-point manual clamps for increased screen pressure
Registration
•Division to lerance is extremely accurate because we understand that proper registration is directly responsible for printquality
• Upper division has an acceptable range of +/-0,01 mm
• Printing point on pallets has maximum deviation of +/- 0,025 mm.
•The numbers above ensure maximum accuracy for textile screenprinting and also enables accuracy for other specialty materials and surface printing
• Side micro-alignment with3 axis
• Fast print alignment with floor light pallet
Squeegee and flood bar
•Independent settings for squeegee and flood bar print adjustment
• Fast and simple squeegee and flood bar angle adjustment
Warranty and service
• 1 year warranty
• Service agreement with special conditions
Options
• Print stroke adjustment package with inner and outer print stroke adjustment with fault proof carriage system– eliminates possibility of head crash • Pneumatic screen locks
- Vladikavkaz
- SEVER
- Model: Minimatic 3/8
- Installation year: 2018
- Borovsk
- PICNECO
- Model: Minimatic 4/8
- Installation year: 2018
- Kazan
- PAVLOTTI
- Model: Minimatic 8/10
- Installation year: 2018
- Smolensk
- TVOE
- Model: Minimatic 6/8
- Installation year: 2017
- Ivanovo
- SALUT
- Model: Minimatic 8/10
- Installation year: 2017
- Saint-Petersburg
- BOMB-STUDIO
- Model: Minimatic 6/8
- Installation year: 2017
- Shuya
- SUVENIR
- Model: Minimatic Plus 8/10
- Installation year: 2016
- Paleh
- IP VORONKOV A.M.
- Model: Minimatic 6/8
- Installation year: 2016
- Moscow
- PICNECO
- Model: Minimatic 4/6
- Installation year: 2016
- Smolensk
- PROMOCEH
- Model: Minimatic 4/8
- Installation year: 2015
- Ivanovo
- KOMLEV PRINT
- Model: Minimatic 6/8
- Installation year: 2014
- Luberci
- ENERGOKONTRAKT
- Model: Minimatic 6/8
- Installation year: 2013
- Kaluga
- TYPOGRAPHY STYLE
- Model: Minimatic 6/8
- Installation year: 2013
- Tomsk
- AZTEC
- Model: Minimatic 6/8
- Installation year: 2012
- Ivanovo
- IP FEDULOVA S.Y.
- Model: Minimatic 6/8
- Installation year: 2012
