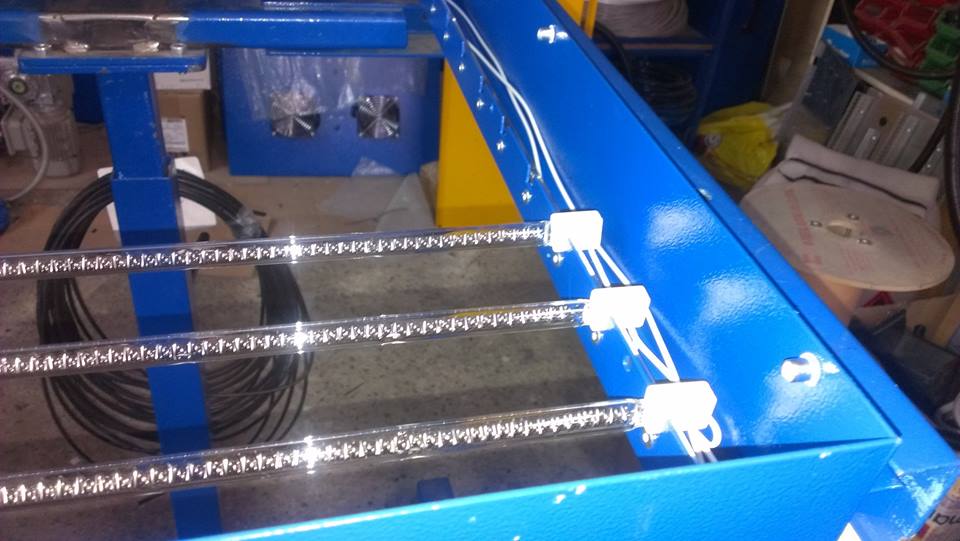

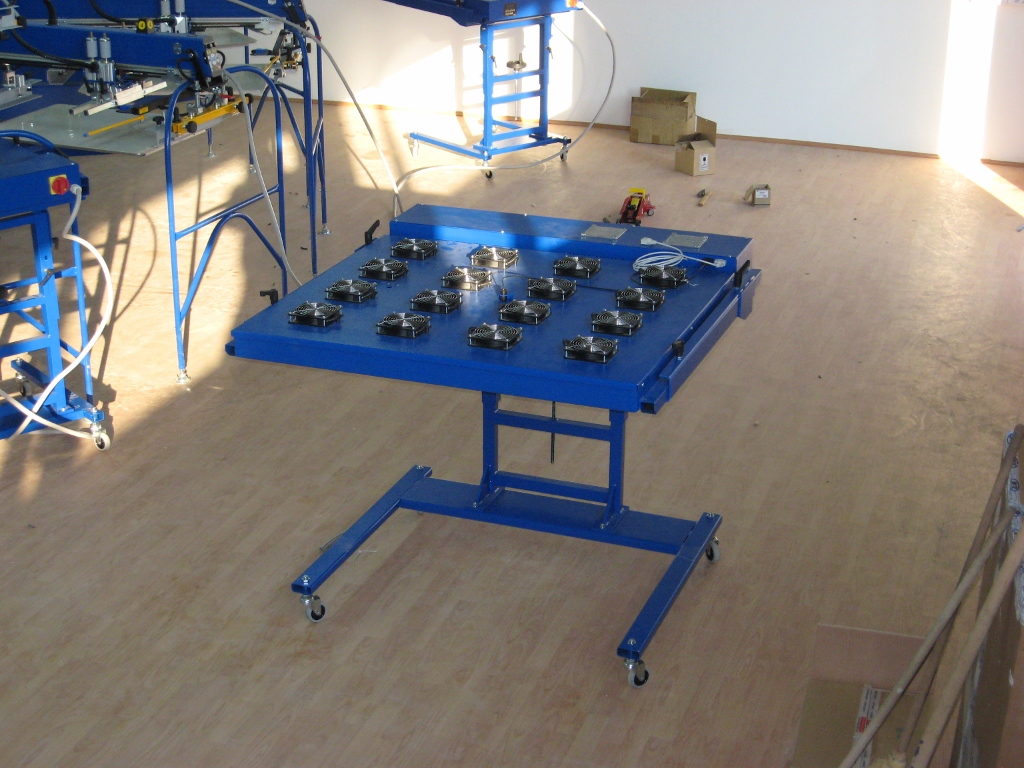

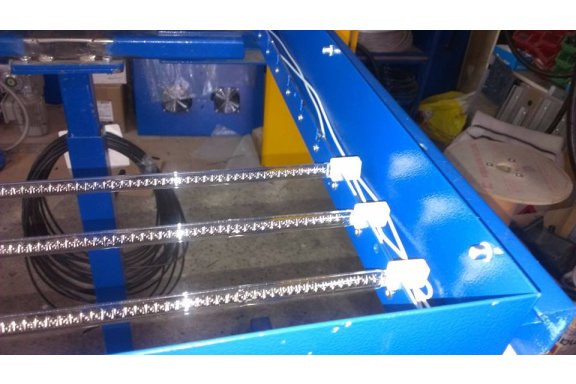

CLH series flash units were designed for efficient work with automatic carousels . Rapid and proper curing are essential for today screen printing . High quality Quartz lamps with high density power are used here. Equipped with power control and substrate temperature regulation system.
| Model | Cure area | Power | Number of zones | Direction of lamps | Number of lamps | Digital programming of power | Digital programming of time | Digital programming of temperature | Preheat | Photocel or communation cabel |
|---|---|---|---|---|---|---|---|---|---|---|
| CLH 1318 | 33х46 cm | 9 kW | 3 | Horizontal | 9 | + | + | + | + | + |
| CLH 1618 | 41х46 cm | 12 kW | 3 | Vertical | 8 | + | + | + | + | + |
| CLH 2020 | 51х51 cm | 13,5 kW | 3 | Horizontal | 9 | + | + | + | + | + |
| CLH 2024 | 51х60 cm | 18 kW | 3 | Horizontal | 12 | + | + | + | + | + |

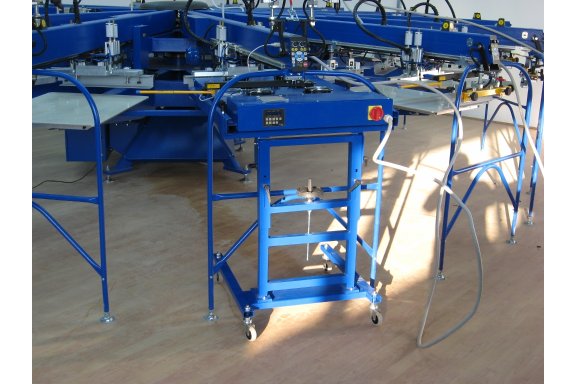

| CLH 2030 | 51х70 cm | 21 kW | 3 | Horizontal | 14 | + | + | + | + | + |
| CLH2432 | 61х81 cm | 22,5 kW | 3 | Horizontal | 15 | + | + | + | + | + |

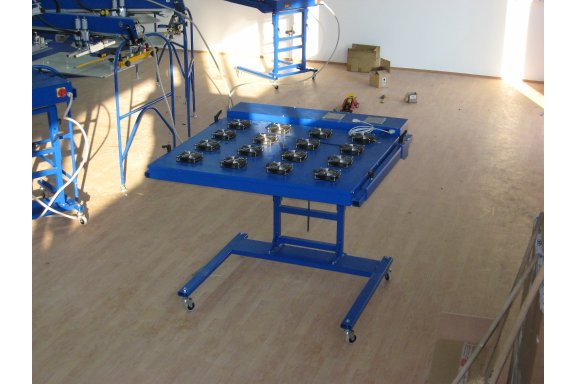

| CLH 4336 | 110х91 cm | 40 kW | 3 | Vertical | 20 | + | + | + | + | + |
CLH series are developed versions of QLH, equipped with temperature regulation and sensing in 2 MODES:
AUT 1 /MAN1- REACH THE TEMPERATURE AND CONTROLL IT, DO NOT EXCEED SET LEVEL OF POWER (Specially useful curing temperature sensitive substrates)
AUT2/MAN 2 – REACH THE TEMPERATURE AND CONTROLL IT, NO LIMIT FOR POWER LEVEL USED
(Specially useful curing precise temperature setting sensitive inks)
- Power regulation with 5% steps
- Time regulation with 0.2 s steps (MANUAL MODE)
- 3 HEATING ZONES with all combination of work
- TEST MODE
- Temperature regulation and sensing
- 6 MODES (AUT, AUT 1, AUT2, MAN, MAN 1, MAN 2)
Optional
Smart Power Management System, consist of TIME DIVISION MODULE reducing POWER/CURRENT to 33% or 66% of Nominal value. Power reduction should be compensated with longer heating time. The MODULE can also generate PAUSE signal for Tunnel Dryer.
